Action Robust Reinforcement Learning

C. Tessler, Y. Efroni, and S. Mannor, “Action robust reinforcement learning and applications in continuous control,” in ICML, 2019, pp. 10846–10855.
http://proceedings.mlr.press/v97/tessler19a.html
https://chentessler.wixsite.com/tessler/post/action-robust-reinforcement-learning
https://tesslerc.github.io/

Motivation

The gap between simulation and real world is so large that policy learning approaches fail to transfer.
Even if policy learning is done in real world, the data scarcity leads to failed generalization from training to test scenarios (e.g. due to different friction or object masses).

Robust Policy

A policy is said to be robust if it maximizes the reward while considering a bad, or even adversarial, model.

The core idea is that modeling errors should be viewed as extra forces or disturbances in the system.

Perturbations: it is not clear how a learned policy would generalize under these perturbations.

traction
friction
tire pressure
humidity
vehicle mass
road conditions

Different from Transition Dynamics Uncertainty Robust RL

Transition dynamics uncertainty

Solving a max-min optimization problem over a set of possible model parameters, an uncertainty set.

It is not clear how to obtain these uncertainty sets.
It is not clear if and how these approaches may be extended to non-linear function approximation schemes, e.g. neural networks.

Action uncertainty

Consider action perturbations:

Probabilistic action: correlate to abrupt interruptions such as a sudden push.
Noisy action: correlate to a constant interrupting force, may be seen as an adversary applying force in the opposite direction.

Consider Two Scenarios of Action Uncertainty

Policy Space: The agent attempts to perform an action \(a\), and with probability \(\alpha\), an alternative adversarial action \(\bar{a}\) is taken.
Action Space: An adversary adds a perturbation to the selected action \(a\).

Zero-Sum Games

Two player zero-sum game:

\(a \in A, \bar{a} \in \bar{A}\).
\(r(s_t,a_t,\bar{a}_t)\).
\(s_{t+1} \sim P(s_t,a_t,\bar{a}_t)\).

Value function of the game:

\[V_{\pi,\bar{\pi}}(s) = \mathbb{E}_{\pi,\bar{\pi}} \left[ \sum_{t = 0}^\infty \gamma^t r(s_t,a_t,\bar{a}_t) \bigg\vert s_0 = s \right], \quad \forall s \in S.\] \[\begin{aligned} V_*(s) & = \max_{\pi \in P(\Pi)} \min_{\bar{\pi} \in \Pi} \mathbb{E}_{\pi,\bar{\pi}} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t,\bar{a}_t) \bigg\vert s_0 = s \right], \\ & = \min_{\bar{\pi} \in P(\Pi)} \max_{\pi \in \Pi} \mathbb{E}_{\pi,\bar{\pi}} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t,\bar{a}_t) \bigg\vert s_0 = s \right], \end{aligned}\]

where

\(\Pi\) is the set of stationary deterministic policies on \(A\).
\(P(\Pi)\) denotes the set of stationary stochastic policies.

Note that, policies which attain this value, \(\pi^\star\) and \(\bar{\pi}^\star\) for the players, are said to be in Nash-Equilibrium. In this scenario, neither player may improve it’s outcome further, e.g. \(\forall \pi,\bar{\pi} \in P(\Pi), V^{\pi,\bar{\pi}^\star} \le V^\star \le V^{\pi^\star,\bar{\pi}}\).

Probabilistic Action Robust MDP

Let \(\pi,\bar{\pi}\) be policies of agent and adversary, respectively. Define their probabilistic joint policy:

\[\pi_{P,\alpha}^{mix}(\pi, \bar{\pi}) = \pi_{P,\alpha}^{mix}(a \vert s) = (1-\alpha) \pi(a \vert s) + \alpha \bar{\pi}(a \vert s), \quad \forall s \in S, \alpha \in [0,1].\]

The value function of the joint policy is defined by:

\[V_{P,\alpha}^\pi = \min_{\bar{\pi} \in \Pi} \mathbb{E}_{\pi_{P,\alpha}^{mix}(\pi,\bar{\pi})} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t) \right], \quad a_t \sim \pi_{P,\alpha}^{mix}(\pi(s_t),\bar{\pi}(s_t)).\]

The optimal probabilistic robust policy is:

\[\pi_{P,\alpha}^* \in \arg\max_{\pi \in P(\Pi)} \min_{\bar{\pi} \in \Pi} \mathbb{E}_{\pi_{P,\alpha}^{mix}(\pi,\bar{\pi})} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t) \right].\]

MDP Model for PR-MDP

By considering the probabilistic action, a class of models is implicitly defined, and the probabilistic robust policy is optimal w.r.t. the worst possible model in this class.

Define the following class of models:

\[P_\alpha = \{ (1-\alpha)P + \alpha P^\pi : P(\Pi) \},\] \[R_\alpha = \{ (1-\alpha)r + \alpha r^\pi : \pi \in P(\Pi) \}.\]

Then, the optimal policy is:

\[\pi_{P,\alpha}^* \in \arg\max_{\pi' \in \Pi} \min_{P \in P_\alpha, r \in R_\alpha} \mathbb{E}_{P,\pi'} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t) \right].\]

Use Policy Iteration schemes to solve the optimal policy

Probabilistic Robust PI
- given a fixed adversary strategy, it calculates the optimal counter strategy.
- it solves the 1-step greedy policy w.r.t. the value function of the mixture policy.
Soft Probabilistic Robust PI
- using gradient information to update the adversary policy, it works by finding the valid policy with the highest correlation, i.e. inner product, with the direction of gradient descent and performs a step towards it.

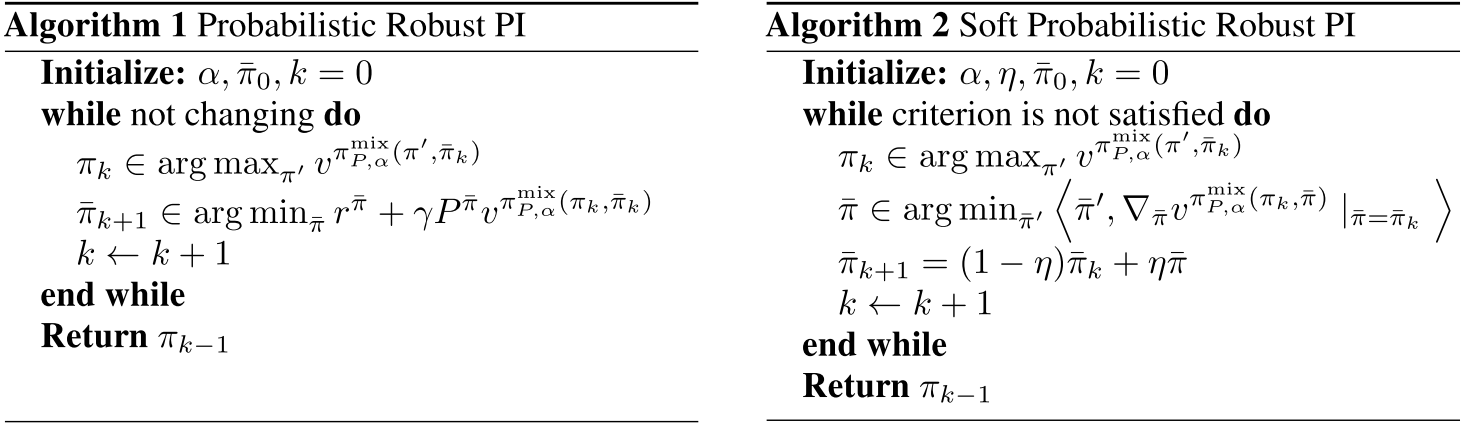

: Algorithms of Probabilistic Robust PI

\[\arg \min_{\bar{\pi}' \in \Pi} \left[ r^{\bar{\pi}'} + \gamma P^{\bar{\pi}'} V_{\pi_{P,\alpha}^{mix}(\pi,\bar{\pi})} \right] = \arg \min_{\bar{\pi}' \in \Pi} \langle \bar{\pi}', \nabla_{\bar{\pi}} V_{\pi_{P,\alpha}^{mix}(\pi,\tilde{\pi})} \vert_{\tilde{\pi} = \bar{\pi}} \rangle.\]

When \(\eta = 1\), the two algorithms are completely equivalent.

Noisy Action Robust MDP

Instead of a stochastic perturbation in the policy space, we consider a perturbation in the action space.

For probabilistic action robust MDP, a deterministic stationary optimal policy exists.
For noisy action robust MDP, the optimal policy is a stochastic policy.

Define the noisy joint policy:

\[\pi_{N,\alpha}^{mix}(\pi,\bar{\pi}) = \pi_{N,\alpha}^{mix}(a \vert s) = \mathbb{E}_{b \sim \pi(\cdot \vert s), \bar{b} \sim \bar{\pi}(\cdot \vert s)} \left[ \mathbb{1}_{a = (1-\alpha)b + \alpha \bar{b}} \right], \quad \forall s \in S, \alpha \in [0,1].\]

The value function is defined by:

\[V_{N,\alpha}^\pi = \min_{\bar{\pi} \in \Pi} \mathbb{E}_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi})} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t) \right], \quad a_t \sim \pi_{N,\alpha}^{mix}(\pi(s_t), \bar{\pi}(s_t)).\]

The optimal noisy robust policy is:

\[\pi_{N,\alpha}^* \in \arg \max_{\pi \in P(\Pi)} \min_{\bar{\pi} \in \Pi} \mathbb{E}_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi})} \left[ \sum_{t=0}^\infty \gamma^t r(s_t,a_t) \right].\]

Use Policy Iteration to solve the optimal policy

\[\pi_k \in \arg \max_{\pi \in \Pi} V_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi}_k)},\] \[\pi_k \in \arg \min_{\bar{\pi} \in P(\Pi)} \max_{\pi \in \Pi} \left[ r_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi})} + P_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi})} V_{\pi_{N,\alpha}^{mix}(\pi_k, \bar{\pi}_k)} \right].\] \[r_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi})}(s) = \mathbb{E}_{a \sim \pi, \bar{a} \sim \bar{\pi}} [r(s, (1-\alpha)a + \alpha \bar{a})].\] \[P_{\pi_{N,\alpha}^{mix}(\pi,\bar{\pi})}(s,s') = \mathbb{E}_{a \sim \pi, \bar{a} \sim \bar{\pi}} [P(s' \vert s, (1-\alpha)a + \alpha \bar{a})].\]

Applications in Continuous Control

MuJoCo domains: robotic manipulation (continuous control problems).
Probabilistic actor: the occurrence of large abrupt forces (e.g. someone suddenly pushes the robot).
Noisy actor: mass uncertainty, the robot is heavier or lighter.

Action Robust DDPG

Train two networks, the actor and adversary, denote by \(\mu_\theta\) and \(\bar{\mu}_{\bar{\theta}}\).

The probabilistic action robust joint policy is:

\[\pi_{P,\alpha}^{mix}(u \vert s; \theta, \bar{\theta}) = (1-\alpha)\delta(u - \mu_\theta(s)) + \alpha \delta(u - \bar{\mu}_{\bar{\theta}}(s)),\]

where \(\delta(\cdot)\) is the Dirac delta function:

\[\delta(x-x_0) = 0 \quad x \ne x_0,\] \[\delta(x-x_0) = \infty \quad x = x_0,\] \[\int \delta(x-x_0)dx = 1,\] \[\int f(x)\delta(x-x_0)dx = f(x_0).\]

The noisy action robust joint policy is:

\[\pi_{N,\alpha}^{mix}(u \vert s; \theta, \bar{\theta}) = \delta(u - ((1-\alpha)\mu_\theta(s) + \alpha \bar{\mu}_{\bar{\theta}}(s))).\]

The performance objective is defined by:

\[J(\pi(\mu_\theta, \bar{\mu}_{\bar{\theta}})) = \mathbb{E}_{s \sim p^\pi} [V_\pi(s)].\]

The gradient of the actor and adversary parameters is:

\[\nabla_\theta J(\pi(\mu_\theta, \bar{\mu}_{\bar{\theta}})) = (1-\alpha) \mathbb{E}_{s \sim p^\pi}[\nabla_\theta \mu_\theta(s)\nabla_a Q_\pi(s,a)],\] \[\nabla_{\bar{\theta}} J(\pi(\mu_\theta, \bar{\mu}_{\bar{\theta}})) = \alpha \mathbb{E}_{s \sim p^\pi}[\nabla_{\bar{\theta}} \bar{\mu}_{\bar{\theta}}(s) \nabla_{\bar{a}} Q_\pi(s,\bar{a})].\]

For probabilistic action, \(a = \mu_\theta(s)\) and \(\bar{a} = \bar{\mu}_{\bar{\theta}}(s)\).
For noisy action, \(a = \bar{a} = (1-\alpha)\mu_\theta(s) + \alpha \bar{\mu}_{\bar{\theta}}(s)\).

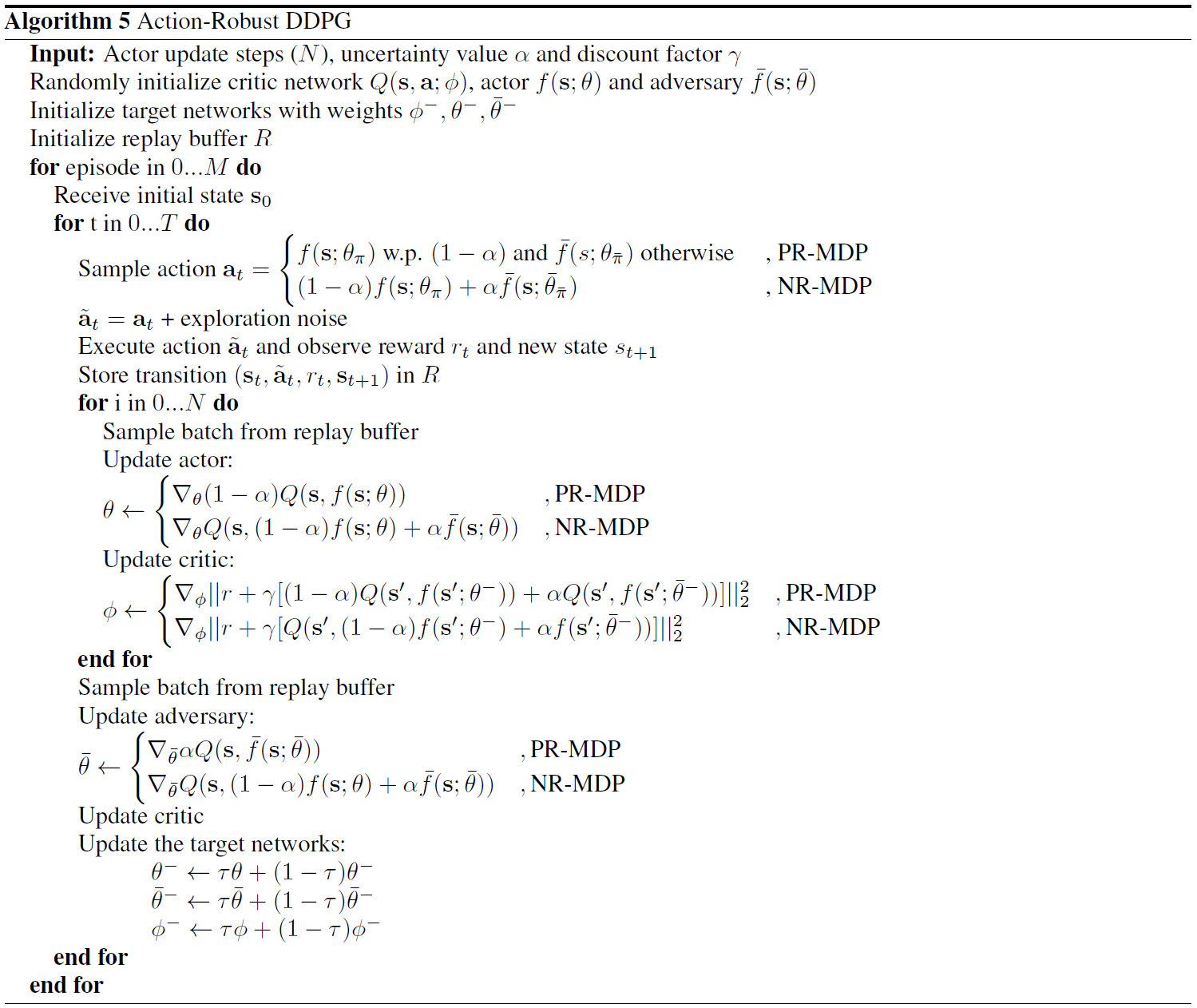

: Algorithm of Action Robust DDPG

Code of AR-DDPG

Select the action

NR-MDP: \(a_t = (1-\alpha)\pi_\theta + \alpha\bar{\pi}_{\bar{\theta}}\).
PR-MDP: \(\pi_\theta\) w.p. \((1-\alpha)\), or \(\bar{\pi}_{\bar{\theta}}\) w.p. \(\alpha\).
MDP: \(\pi_\theta\).

def select_action(self, state, action_noise=None, param_noise=None, mdp_type='mdp'):
    state = normalize(Variable(state).to(self.device), self.obs_rms, self.device)

    if mdp_type != 'mdp':
        if mdp_type == 'nr_mdp':
            if param_noise is not None:
                mu = self.actor_perturbed(state)
            else:
                mu = self.actor(state)
            mu = mu.data
            if action_noise is not None:
                mu += self.Tensor(action_noise()).to(self.device)

            mu = mu.clamp(-1, 1) * (1 - self.alpha)

            if param_noise is not None:
                adv_mu = self.adversary_perturbed(state)
            else:
                adv_mu = self.adversary(state)

            adv_mu = adv_mu.data.clamp(-1, 1) * self.alpha

            mu += adv_mu
        else:  # mdp_type == 'pr_mdp':
            if np.random.rand() < (1 - self.alpha):
                if param_noise is not None:
                    mu = self.actor_perturbed(state)
                else:
                    mu = self.actor(state)
                mu = mu.data
                if action_noise is not None:
                    mu += self.Tensor(action_noise()).to(self.device)

                mu = mu.clamp(-1, 1)
            else:
                if param_noise is not None:
                    mu = self.adversary_perturbed(state)
                else:
                    mu = self.adversary(state)

                mu = mu.data.clamp(-1, 1)

    else:
        if param_noise is not None:
            mu = self.actor_perturbed(state)
        else:
            mu = self.actor(state)
        mu = mu.data
        if action_noise is not None:
            mu += self.Tensor(action_noise()).to(self.device)

        mu = mu.clamp(-1, 1)

    return mu

Store transition

\[(s_t,a_t,r_t,s_{t+1}) \in B.\]

def store_transition(self, state, action, mask, next_state, reward):
    B = state.shape[0]
    for b in range(B):
        self.memory.push(state[b], action[b], mask[b], next_state[b], reward[b])
        if self.normalize_observations:
            self.obs_rms.update(state[b].cpu().numpy())
        if self.normalize_returns:
            self.ret = self.ret * self.gamma + reward[b]
            self.ret_rms.update(np.array([self.ret]))
            if mask[b] == 0:  # if terminal is True
                self.ret = 0

Sample batch from replay buffer

transitions = self.memory.sample(batch_size)
batch = Transition(*zip(*transitions))

if mdp_type != 'mdp':
    robust_update_type = 'full'
elif exploration_method != 'mdp':
    robust_update_type = 'adversary'
else:
    robust_update_type = None

state_batch = normalize(Variable(torch.stack(batch.state)).to(self.device), self.obs_rms, self.device)
action_batch = Variable(torch.stack(batch.action)).to(self.device)
reward_batch = normalize(Variable(torch.stack(batch.reward)).to(self.device).unsqueeze(1), self.ret_rms, self.device)
mask_batch = Variable(torch.stack(batch.mask)).to(self.device).unsqueeze(1)
next_state_batch = normalize(Variable(torch.stack(batch.next_state)).to(self.device), self.obs_rms, self.device)

Update parameters of actor & critic & adversary

def update_robust(self, state_batch, action_batch, reward_batch, mask_batch, next_state_batch, adversary_update,
                    mdp_type, robust_update_type):
    # TRAIN CRITIC
    if robust_update_type == 'full':
        if mdp_type == 'nr_mdp':
            next_action_batch = (1 - self.alpha) * self.actor_target(next_state_batch) \
                                + self.alpha * self.adversary_target(next_state_batch)

            next_state_action_values = self.critic_target(next_state_batch, next_action_batch)
        else:  # mdp_type == 'pr_mdp':
            next_action_actor_batch = self.actor_target(next_state_batch)
            next_action_adversary_batch = self.adversary_target(next_state_batch)

            next_state_action_values = self.critic_target(next_state_batch, next_action_actor_batch) * (
                        1 - self.alpha) \
                                        + self.critic_target(next_state_batch,
                                                                    next_action_adversary_batch) * self.alpha

        expected_state_action_batch = reward_batch + self.gamma * mask_batch * next_state_action_values

        self.critic_optim.zero_grad()

        state_action_batch = self.critic(state_batch, action_batch)

        value_loss = F.mse_loss(state_action_batch, expected_state_action_batch)
        value_loss.backward()
        self.critic_optim.step()
        value_loss = value_loss.item()
    else:
        value_loss = 0

    if adversary_update:
        # TRAIN ADVERSARY
        self.adversary_optim.zero_grad()

        if mdp_type == 'nr_mdp':
            with torch.no_grad():
                real_action = self.actor_target(next_state_batch)
            action = (1 - self.alpha) * real_action + self.alpha * self.adversary(next_state_batch)
            adversary_loss = self.critic(state_batch, action)
        else:  # mdp_type == 'pr_mdp'
            action = self.adversary(next_state_batch)
            adversary_loss = self.critic(state_batch, action) * self.alpha

        adversary_loss = adversary_loss.mean()
        adversary_loss.backward()
        self.adversary_optim.step()
        adversary_loss = adversary_loss.item()
        policy_loss = 0
    else:
        if robust_update_type == 'full':
            # TRAIN ACTOR
            self.actor_optim.zero_grad()

            if mdp_type == 'nr_mdp':
                with torch.no_grad():
                    adversary_action = self.adversary_target(next_state_batch)
                action = (1 - self.alpha) * self.actor(next_state_batch) + self.alpha * adversary_action
                policy_loss = -self.critic(state_batch, action)
            else:  # mdp_type == 'pr_mdp':
                action = self.actor(next_state_batch)
                policy_loss = -self.critic(state_batch, action) * (1 - self.alpha)

            policy_loss = policy_loss.mean()
            policy_loss.backward()
            self.actor_optim.step()

            policy_loss = policy_loss.item()
            adversary_loss = 0
        else:
            policy_loss = 0
            adversary_loss = 0

    return value_loss, policy_loss, adversary_loss

soft_update(self.actor_target, self.actor, self.tau)
soft_update(self.adversary_target, self.adversary, self.tau)
soft_update(self.critic_target, self.critic, self.tau)

def soft_update(target, source, tau):
    for target_param, param in zip(target.parameters(), source.parameters()):
        target_param.data.copy_(target_param.data * (1.0 - tau) + param.data * tau)

References

Action Robust Reinforcement Learning and Applications in Continuous Control
